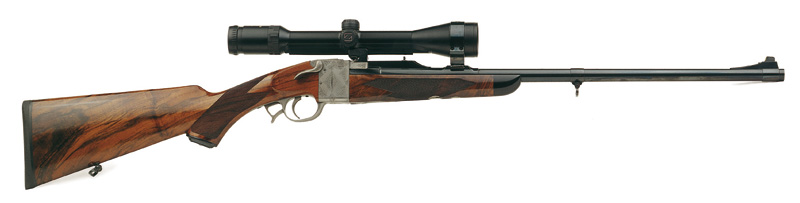

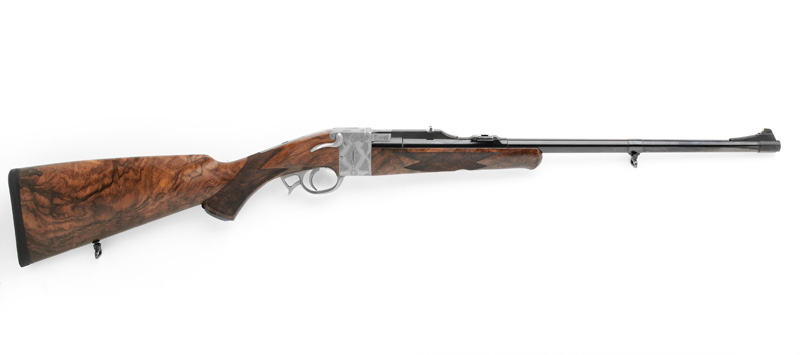

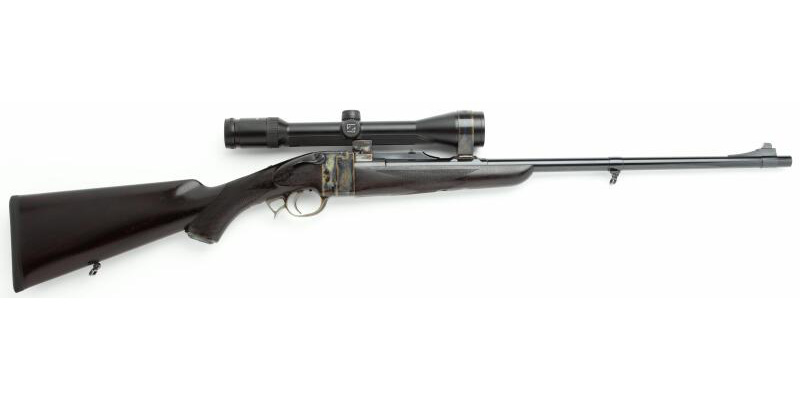

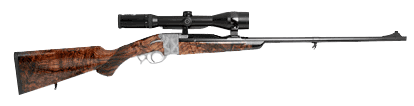

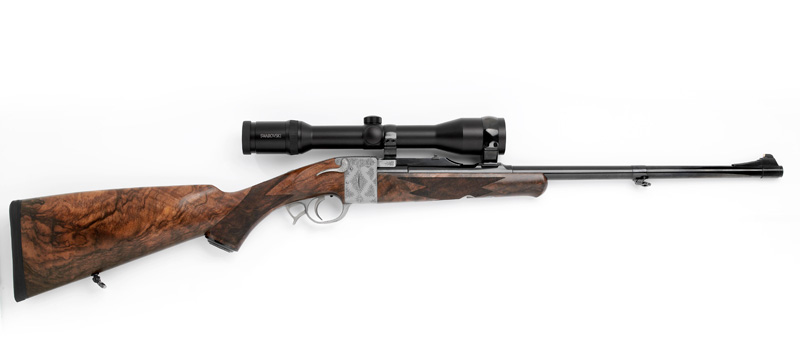

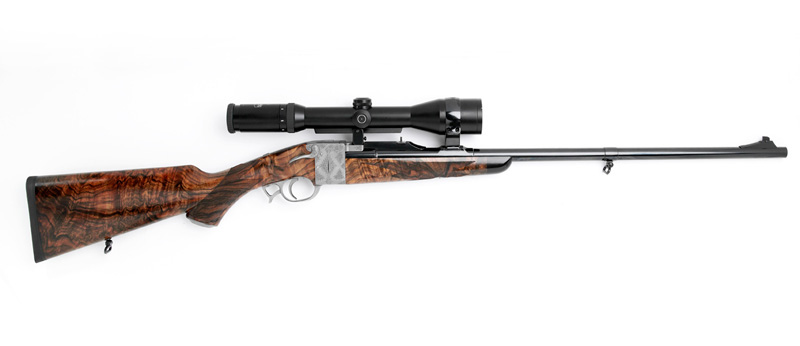

A new patented design .The design of this rifle as a small traditional looking compact portable rifle is ideally suited for use in the vertical rugged Bavarian Alps.  This of course creates a design for uses were a small compact rifle is the right choice.

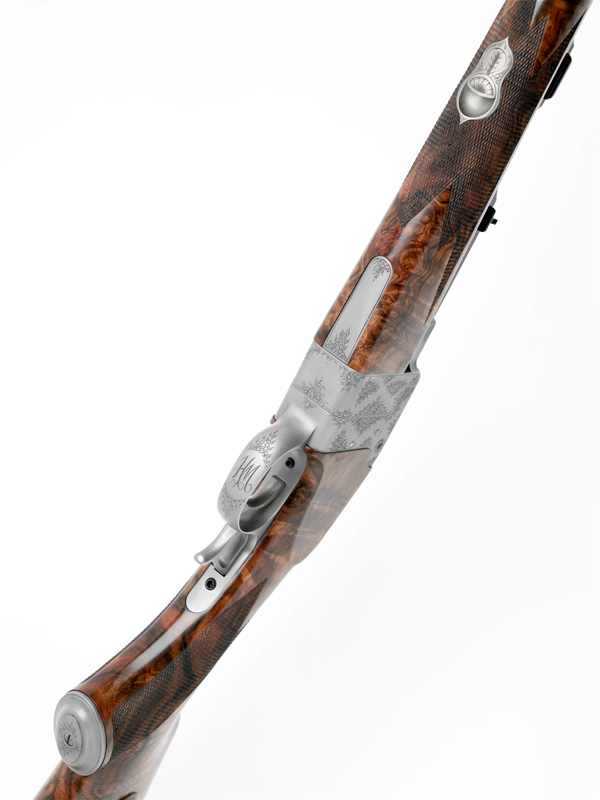

The action

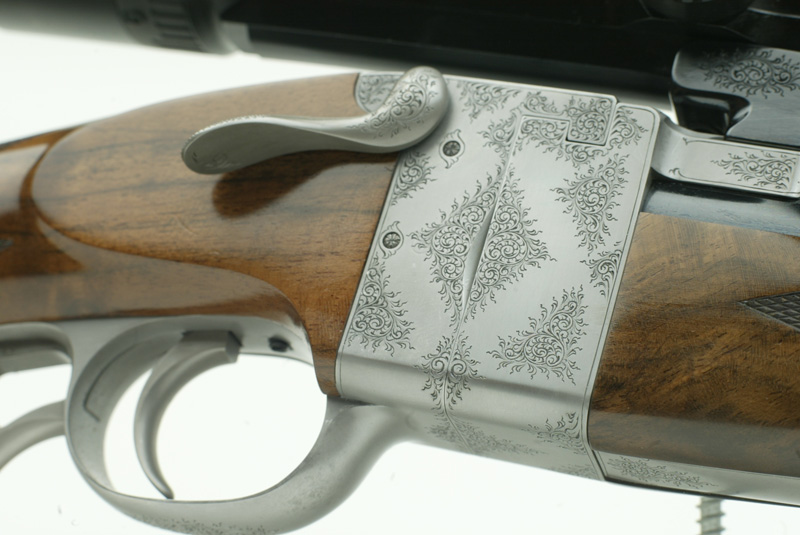

To Load - The side-lever is pushed down and the barrel is rotated clockwise. Insert cartridge into chamber and rotate counter-clockwise to close action.



To Fire - Push lever behind the trigger guard cocks the hammer.  To Un-Cock/Safe - The hammer maybe un-cocked by the small button on top the top tang or by depressing the side-lever as in opening the barrel to load.  This feature insures that the firing mechanism cannot be accident fired when the action is not locked. To remove barrel - Take forend off, depress side-lever and rotate barrel clockwise 100 degrees, barrel easily separated from action.

To remove stock - Loosen socket screw behind trigger guard, stock is easily removed allowing easy access to action parts for easy cleaning.

Technical information:
Weight:  6 - 7.3 lbs
Length:  38.6 inch with 22 inch barrel
calibres: Any rimmed or rimless cartridges up to 300 Wby ,  8X68S,  9.3X74R
